— Touch Screen Display
Powerful video and image display devices.

Product Features
• Touch Screen applications of large sizes, 55”,65”, 70”, 84”98”;
• Professional grade LCD displays with LED backlit with lifespan 100,000hr;
• Supporting infrared Dual touch/Multi-touch;
• Aluminum frame with narrow bezel 28mm & bezel colors customized available;
• Chemically strengthened, anti-glare, anti-smudge glass options available;
• Shortcut key on the face glass for convenient use;
• PC expansion slots, easy to input/output the audio video signal;
• With the smart power energy saving function, the stand-by power consumption can be 0.5W;
• Designed for 24/7 usage

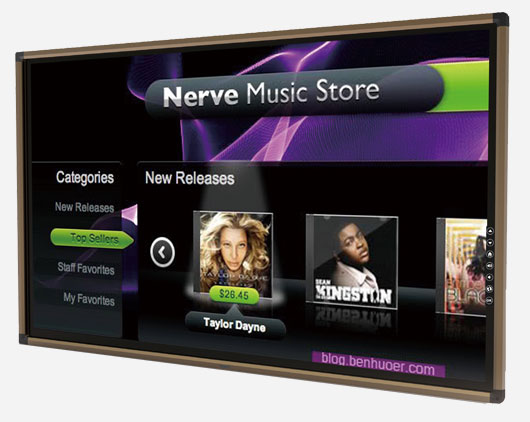

55" Professional LED Backlit LCD Touch Screen Display
55-inch professional display adopts LED full-array type backlight panels, with more delicate image quality and clearer definition. Ultra-narrow bezel design features a 28mm to bezel width, which let the appearance much thinner, narrower and lighter. Professional industry LED panel can achieve energy saving and longer life. 55-inch professional display supports 7 * 24 hours of continuous work, which provides the stable information broadcasting solutions to the airports, subways, stores, public places, hotels and other places.
TW55HDEM
Screen Size:
55"
Resolution:
1920×1080(FHD)
Power Consumption:
115w
Integrated Speaker:
No
Pixel Pitch:
0.63mm
Backlight
LED
Aspect Ratio
16:9
Response time
8ms(G to G)
Contrast Ratio
4000:1
VESA Compatible
400×400,4-M6
Viewing Angle
178°(CR≥10)
Color
8bit - 16.7M
Net Weight
≈45KG
Brightness
350cd/m2
Frame
Aluminum; 28mm
INPUTS/OUTPUTS
65" Professional LED Backlit LCD Touch Screen Display
65-inch interactive touch display adopts LED full-array backlight panel, with dedicate and clear images. It has arc angled aluminum housing and only 2.8cm ultra-narrow frame design. 65-inch interactive touch display has attractive appearance and sophisticated technology. The menu functions can be displayed by direct touchcontrol no need for remote control or physical button .Built-in dual-point / multi-point infrared touch units selfdeveloped by iSEMC make touch and write smooth and precise.
TW65HDEM
Screen Size:
65"
Resolution:
1920×1080(FHD)
Power Consumption:
200w
Integrated Speaker:
No
Pixel Pitch:
0.744mm
Backlight
LED
Aspect Ratio
16:9
Response time
8ms(G to G)
Contrast Ratio
4000:1
VESA Compatible
600×400,4-M8
Viewing Angle
178°(CR≥10)
Color
10bit - 1.07Billion
Net Weight
≈86KG
Brightness
360cd/m2
Frame
Aluminum; 28mm
INPUTS/OUTPUTS
75" Professional LED Backlit LCD Touch Screen Display
75-inch interactive touch display adopts industrial-level LED full-array type backlight panel, of which the lifetime can be 100,000 hours because of its effective energy-saving. Built-in dual-point / multi-point infrared touch parts self-developed by iSEMC make touch much more sensitive and precise. Power button and the remote receiver is front installed to achieve a key energy-saving features and convenient remote control operation. 3.0cm ultranarrow frame design makes the body more elegant.
TW75HDEM
Screen Size:
75"
Resolution:
3840×2160(4K)
Power Consumption:
150w
Integrated Speaker:
No
Pixel Pitch:
0.48mm
Backlight
LED
Aspect Ratio
16:9
Response time
12ms(G to G)
Contrast Ratio
1100:1
VESA Compatible
600×400,4-M8
Viewing Angle
178°(CR≥10)
Color
10bit - 1070M
Net Weight
≈90KG
Brightness
450cd/m2
Frame
Aluminum; 30mm
INPUTS/OUTPUTS
84" Professional LED Backlit LCD Touch Screen Display
84-inch interactive touch LCD display, super large screen, 4K x 2K ultra HD resolution, 1600:1 HD contrast ratio. Industrialgrade LED panel can save the energy effectively. Built-in iSEMC self-developed two-point infrared touch components / multi-point infrared touch components let touch more sensitive. It is much more accurate and convenient for the pre-USB port to read mobile device files. In addition, the built-in OPS host computer is a completely pluggable design without any external and internal cables, which will be convenient for the maintenance and follow-up product upgrades.
TW84HDEM
Screen Size:
84"
Resolution:
3840×2160(FHD)
Power Consumption:
500w
Integrated Speaker:
Yes
Pixel Pitch:
0.48mm
Backlight
LED
Aspect Ratio
16:9
Response time
5ms
Contrast Ratio
1600:1
VESA Compatible
600×400,4-M8
Viewing Angle
178°(CR≥10)
Color
10bit - 1070M
Net Weight
≈90KG
Brightness
350cd/m2
Frame
Aluminum; 28mm
INPUTS/OUTPUTS
98" Professional LED Backlit LCD Touch Screen Display
98-inch professional display adopts LED full-array backlight panel, with more delicate image quality and clearer definition. Its super-large screen has 4K x 2K Ultra HD resolution and 1300:1 HD contrast ratio, which can restore the original color effect. 28mm for the ultra-narrow aluminum frame makes the appearance more simple and elegant. Professional industry LED panel can realize energy saving and longer life. Easy installation and flexible application can be achieved by the optional built-in OPS function.
TW98HDEM
Screen Size:
98"
Resolution:
3840×2160(UHD)
Power Consumption:
490w
Integrated Speaker:
Yes
Pixel Pitch:
0.48mm
Backlight
LED
Aspect Ratio
16:9
Response time
5ms(G to G)
Contrast Ratio
1300:1
VESA Compatible
800×400,4-M8
Viewing Angle
178°(CR≥10)
Color
10bit - 1.06Billion
Net Weight
≈180KG
Brightness
500cd/m2
Frame
Aluminum; 28mm
INPUTS/OUTPUTS
